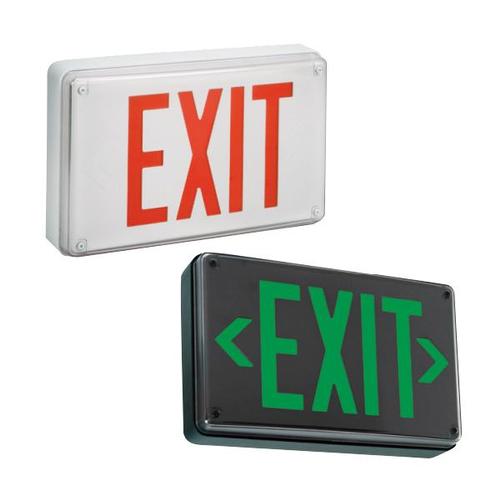

LV S Extreme Exit Sign (Battery Backup)

Brand: Lithonia Lighting

See PRODUCT DESCRIPTION below

Variation Options Filter (353 Model Variations to choose) Use these filters to narrow Product Variations list below.

As configured: LV S

* Face/Housing Color

* Faces

* Letter Color

Voltage

Emergency Operation

Self-Diagnostics

Fire Alarm Flashing

Universal Mount

UL Listing

Cold Weather

Food Protection Area

Assembled in America

All (*) form fields are required.

RESET

Select from 353 Model Variations
(Use the filters above to narrow or change this selection.)

View Variations

Order Quantity

/ea as Configured

Weight: 9 lbs
SKU: 20:LV-S-Battery
Product Name: LV S Extreme Exit Sign (Battery Backup) Extreme Wet Location Exit Sign

INTENDED USE

Suitable for cold weather (down to -40°C with CW option), wet location (4X option), security/prisons and high-abuse applications.

CONSTRUCTION

The housing is .25" to .525" thick rugged, low-profile cast aluminum.
Clear, UV-stable polycarbonate cover is .130" thick to prevent cracking or breaking. Cover is secured with four stainless steel Torx T20, tamper-resistant screws with center pin. Cover is secured with four stainless steel Phillips head screws, with the FPA option.
.1" thick polycarbonate faceplate incorporates universal directional chevron knockouts that are concealed and easily removed and replaced.
Universal mount (UM) option available – top, back, end mounting or conduit entry. (canopy provided)
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,611,163 and D383,501.

OPTICS

Lamp is constructed using new LED technology. Provides perfectly uniform illumination.
The typical life of the exit LED lamp is 10 years. Single-face exit uses one LED lamp; double-face exit uses two LED lamps. Low energy consumption — red lamp consumes 3.3 watts (120V); green lamp consumes 1.7 watts (120V).

ELECTRICAL

Dual voltage input capability (120/277V).
Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp. Constant-current series charger, automatic recharge after battery discharge.
Vandal-resistant magnetic test switch (magnet included) and LED indicator mounted on bottom of housing provide a safe, easy means for testing. Manual test switch also provided inside housing.
Polarized battery connector simplifies installation and maintenance; prevents charger damage from improper connection.
Brownout protection.
Low voltage disconnect allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Self-diagnostics (optional). Automatically tests once a month for five minutes and once every six months for 30 minutes. Bi-color LED status indicator, test and service required.

INSTALLATION

Back mount standard for single face (no canopy), unless universal mount (UM) specified. Conduit entry (1/2" - 14 UNC) included with universal mounting. Cast-aluminum canopy attaches to 10-gauge steel mounting plate for top or end mounting (not required for back mounting). Canopy mounting bracket provides 160 lbs. of mounting strength when mounted to suitable structure. Bracket will only fit a 2-gang junction box.

LISTINGS

UL Listed (standard). NOM certified (see Option). 4X option is UL Listed to NEMA 4X ratings. CW and 4X option is UL 924 wet location listed. NSF certified (FPA option). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, and State of Minnesota energy-efficient legislation requiring less than 20W consumption. Suitable for ambient temperatures 10°C (50°F) to 40°C (104°F).

WARRANTY

This item can replace: LVS
