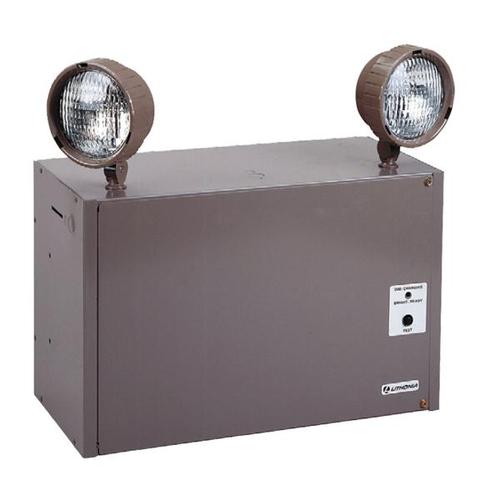

ELT Titan® Die-formed Steel Emergency Unit

Brand: Lithonia Lighting


See PRODUCT DESCRIPTION below

Starting at $1,398.25

Variation Options Filter (19 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: ELT

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$1,398.25

/ea as Configured

Weight: 45 lbs
SKU: 20:ELT-Titan
Product Name: ELT Titan® Die-formed Steel Emergency Unit Titan® Steel Emergency Light

DESCRIPTION


Ideal for applications where steel housing or metal lamp heads are a requirement.

CONSTRUCTION
18-gauge steel housing finished in instrument tan color. Hinged faceplate for easy maintenance.

OPTICS
Two glass sealed-beam lamps in thermoplastic housings, available in incandescent and halogen lamp types.

ELECTRICAL
Dual-voltage input capability (120 or 277 volts)
Battery: Batteries are sealed, maintenance-free, lead-acid (SLA) with wattage capacities of 125, 180 or 275 watts for 90 minutes of emergency operation.

Low-voltage disconnect prevents excessively deep discharge that can permanently damage the battery. AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.

Current limiting charger maximizes battery life and minimizes energy consumption. Thermal protection senses circuitry temperature and adjust charge current to prevent overheating and charger failure. Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature.

LISTINGS
UL listed. Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.

WARRANTY
3-year limited warranty.

This item can replace: ELT

VARIATIONS

ELT125 ELT125
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 H ELT125 H
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 8W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 H1212 TD ELT125 H1212 TD
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 12W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: Yes
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 H1212 USPOM ELT125 H1212 USPOM
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 12W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: Yes
ELT125 N2512 TD ELT125 N2512 TD
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: Yes
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 N2512 USPOM ELT125 N2512 USPOM
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: Yes
ELT125 R0 H ELT125 R0 H
  • Series: 12 Volt 125 Watt
  • Housing Color: Tan
  • Lamp Heads: No Heads
  • Lamp Type: 8W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 W MT H5012 ELT125 W MT H5012
  • Series: 12 Volt 125 Watt
  • Housing Color: White
  • Lamp Heads: Metal Heads
  • Lamp Type: 50W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 W N2512 ELT125 W N2512
  • Series: 12 Volt 125 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT125 W N2512 AM VM ELT125 W N2512 AM VM
  • Series: 12 Volt 125 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: Yes
  • Voltmeter: Yes
  • NOM Certified: No
  • Assembled in America: No
ELT125 W N2512 NOM ELT125 W N2512 NOM
  • Series: 12 Volt 125 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: Yes
  • Assembled in America: No
ELT125 W N2512 USPOM ELT125 W N2512 USPOM
  • Series: 12 Volt 125 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: Yes
ELT-180 Emergency Light ELT-180 Emergency Light
  • Series: 12 Volt 180 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT180 H ELT180 H
  • Series: 12 Volt 180 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 8W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT180 W H1212 ELT180 W H1212
  • Series: 12 Volt 180 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 12W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT-275 ELT-275
  • Series: 12 Volt 275 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT275 H ELT275 H
  • Series: 12 Volt 275 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 8W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT275 H1212 ELT275 H1212
  • Series: 12 Volt 275 Watt
  • Housing Color: Tan
  • Lamp Heads: Two Heads
  • Lamp Type: 12W Halogen
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
ELT275 W N2512 ELT275 W N2512
  • Series: 12 Volt 275 Watt
  • Housing Color: White
  • Lamp Heads: Two Heads
  • Lamp Type: 25W Incandescent
  • Load Disconnect Switch: No
  • Integral Time Delay: No
  • Ammeter: No
  • Voltmeter: No
  • NOM Certified: No
  • Assembled in America: No
