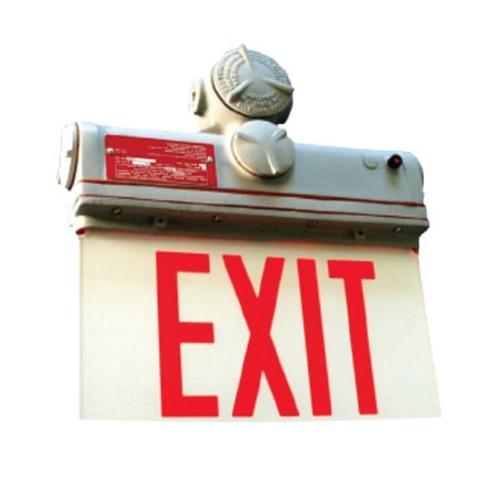

EXP Series Hazardous Location Edge-lit Exit Sign

Brand: Isolite


See PRODUCT DESCRIPTION below

Starting at $2,541.90

Variation Options Filter (2 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: EXP

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$2,541.90

/ea as Configured

Weight: 10 lbs
SKU: 18:EXP-Series
Product Name: EXP Series Hazardous Location Edge-lit Exit Sign Hazardous Location Edge-lit Exit Sign

DESCRIPTION


CONSTRUCTION
  • Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend INPUT
POWER
  • AC models: Red 1.5 watts; Green 2.3 watts
  • EM models: Red 2.5 watts; Green 3.0 watts
LETTERS
  • 6” high; 0.75” stroke
ARROWS
  • NFPA-Type, universal field installable, self-adhesive chevrons
WEIGHT
  • 15 lb
APPROVALS
  • Class I, Div 1 Groups C & D
  • Class I, Div 2 Groups A, B, C & D
  • Class II, Div 1 Groups E, F & G
  • Class III, Div 1
  • Class I, Zone 1, Groups IIA, IIB
  • Class I, Zone 2, Groups IIA, IIB + H2 & IIC
  • Temperature Class (T-Rating) - T6
  • UL 924
  • NFPA 101 Life Safety Code
  • NFPA 70- NEC
  • OSHA
  • IP65
  • TEMPERATURE RATING
  • From 50°F to 104°F
WARRANTY
  • Isolite offers a 5-year limited warranty. For further details, refer to General Warranty and Obligations in the Isolite manual or on our website

This item can replace: EXPSeries

VARIATIONS

EXP-AC-1W-R-MB-AB EXP-AC-1W-R-MB-AB
  • Operation: AC Only
  • Faces: Single White Background
  • Letter Color: Red
  • Mounting : Back Mount
  • Arrows: Double Arrow
  • Self-Diagnostics: No
  • Inverted Face: No
  • Flasher: No
EXP-EM-1W-R-MB-AB EXP-EM-1W-R-MB-AB
  • Operation: Battery Backup
  • Faces: Single White Background
  • Letter Color: Red
  • Mounting : Back Mount
  • Arrows: Double Arrow
  • Self-Diagnostics: No
  • Inverted Face: No
  • Flasher: No
