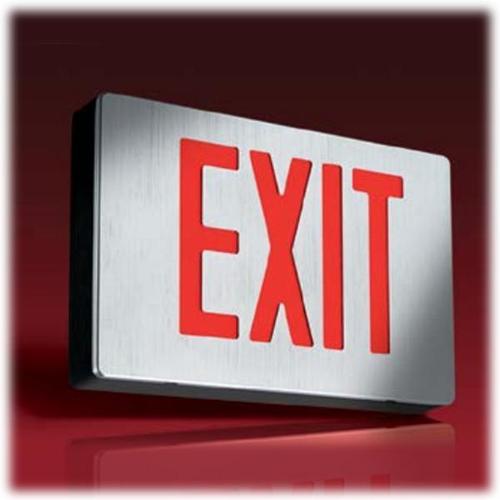

Galaxy XD Series Die-Cast Aluminum Exit Sign

Brand: LightAlarms


See PRODUCT DESCRIPTION below

Starting at $260.85

Variation Options Filter (20 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: XD

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$260.85

/ea as Configured

Weight: 6 lbs
SKU: 87:Galaxy-XD-Series
Product Name: Galaxy XD Series Die-Cast Aluminum Exit Sign Die-Cast Aluminum Exit Sign

DESCRIPTION


Construction

  • Die-cast aluminum housing
  • 6 inch EXIT lettering legend available in red or green
  • Field-selectable chevrons
  • Choice of finishes: white, black or brushed aluminum

    • Mounting

  • Surface mount
  • Canopy included for end or ceiling mount applications
  • Universal J-Box mounting

    • Electronics

  • Optional Improved Diagnostics
  • 120/277 60Hz
  • Compatible with Lightalarms Mini Inverters (contact your sales representative for more information) Special Wording Panels Available. Contact your sales representative with your design requirements

    • Approvals

  • UL 924 Listed
  • Damp location optional 50°F to 104°F (10°C to 40°C)
  • Meets NFPA101 (Life Safety Code), NFPA 70 NEC, OSHA illumination standards
  • E-California Energy Commission Title 20

    • Warranty (subject to proper installation and maintenance)

  • Five-year limited warranty

    This item can replace: GalaxyXDSeries

    VARIATIONS

    1XD21ARW 1XD21ARW
    • Faces: Single
    • Operation: 120 Dual AC
    • Housing Color: Aluminum
    • Letter Color: Red
    • Face Plate Color: White
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XD21WRB 1XD21WRB
    • Faces: Single
    • Operation: 120 Dual AC
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XD22WRB 1XD22WRB
    • Faces: Single
    • Operation: 277 Dual AC
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAARB 1XDAARB
    • Faces: Single
    • Operation: AC Only
    • Housing Color: Aluminum
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDABRB 1XDABRB
    • Faces: Single
    • Operation: AC Only
    • Housing Color: Black
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWGB 1XDAWGB
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Green
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWRA 1XDAWRA
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Brushed Aluminum
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWRB 1XDAWRB
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWRB-DL 1XDAWRB-DL
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: Yes
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWRB-VR 1XDAWRB-VR
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: Yes
    • Open Faceplate and Special Wording Faceplate: No
    1XDAWRB-Y 1XDAWRB-Y
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: Yes
    1XDAWRW 1XDAWRW
    • Faces: Single
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: White
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDCWRB 1XDCWRB
    • Faces: Single
    • Operation: AC/DC
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNDWRB 1XDNDWRB
    • Faces: Single
    • Operation: Self Powered w/ Improved Diagnostic
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNWRB 1XDNWRB
    • Faces: Single
    • Operation: Self Powered
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNWRB-FAF 1XDNWRB-FAF
    • Faces: Single
    • Operation: Self Powered
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: Fire Alarm Flasher
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNWRB-FB 1XDNWRB-FB
    • Faces: Single
    • Operation: Self Powered
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: Flasher and Buzzer
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNWRB-FBF 1XDNWRB-FBF
    • Faces: Single
    • Operation: Self Powered
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: Fire Alarm Activated Flasher/Buzzer
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    1XDNWRB-FL 1XDNWRB-FL
    • Faces: Single
    • Operation: Self Powered
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: Flasher
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
    2XDAWRB 2XDAWRB
    • Faces: Double
    • Operation: AC Only
    • Housing Color: White
    • Letter Color: Red
    • Face Plate Color: Black
    • Damp Location: No
    • Flasher/Buzzer: No
    • Vandal Resistant: No
    • Open Faceplate and Special Wording Faceplate: No
